Bore & Well Pumps
Brumby XS1 Submersible Pump
A versatile all-rounder for water, silt and mud
is now available in New Zealand through MixRite.
This powerful air-operated submersible pump NZ customers have been waiting for delivers water,
cleans silted bores, and handles sand without damage.
If you need a pump that will not burn out, seize, corrode or fail when running dry,
the Brumby XS1 changes the game.
A smarter submersible sump for NZ conditions
The Brumby XS1 Submersible Pump operates using low-pressure compressed air.
There are no electrics down hole. No submerged motors. No risk of electrical failure in wet environments.
You can power the compressor using grid electricity, petrol, diesel, solar or wind.
The compressor can sit hundreds of metres away from the bore. This avoids the cost of running heavy power cables underground.
Air-operated, non-electric technology
This makes it ideal for:
Rural bores and wells
Remote water sites
Mining and dewatering
Stock water supply
Dam circulation and aeration
The Brumby XS1 is built to handle sand, silt and grit
Most submersible pumps fail when they encounter sand. The Brumby XS1 does not.
It was designed to lift sandy, gritty and mineralised water. It will not seize, corrode or burn out. If the bore runs dry, the pump keeps delivering air. It will not overheat. This makes it one of the most durable submersible pump NZ options available today.
Cleans and restores silted bores with ease

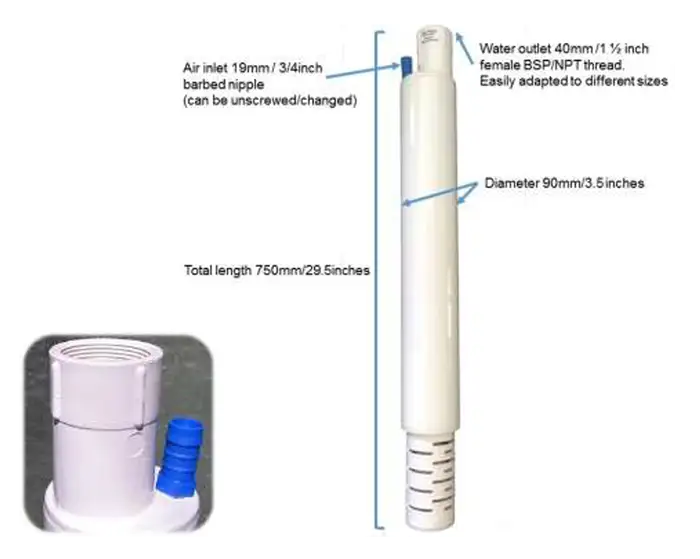

The XS1 is the most popular and versatile Brumby model. It measures 750mm long and 90mm in diameter, and fits bore casings with an internal diameter of at least 100mm.
With a simple modification, the pump can clean out silted bores and restore original depth. This is a genuine DIY solution for bore rehabilitation.
Why Buy the XS1 from MixRite?
MixRite is the New Zealand distributor for Brumby Pumps.
When you purchase through MixRite, you receive:
- NZ based advice
- Application support
- Access to parts
- Integration guidance with dosing systems
The XS1 pairs well with MixRite dosing pumps for fertigation and livestock water systems.
Brumby XS1 performance and specifications
The Brumby XS1 delivers up to 7000 litres per hour depending on submersion depth, lift and air supply.
Key specifications:
- Water outlet: 40mm female
- Air inlet: 19mm standard
- Vertical lift up to 100m with standard compressor
- Submersion up to 60m with 130psi compressor
- Requires approx 2psi per metre of submersion to start
The deeper you submerse the pump, the more water it delivers.

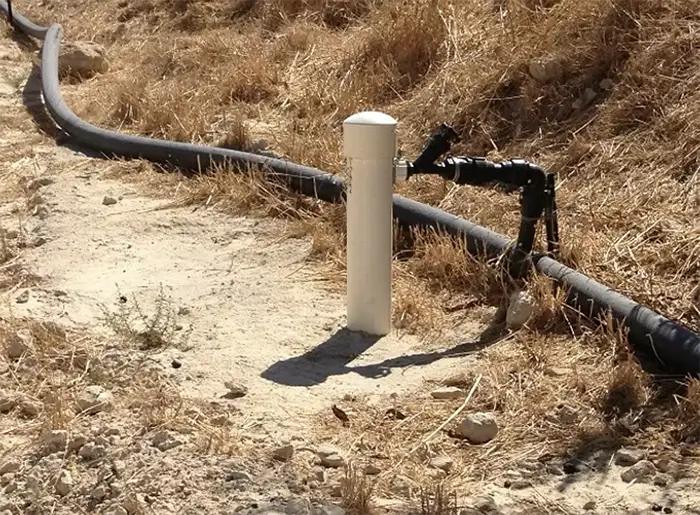

Brumby XS1 simple installation
Installation is quick and practical.
You connect:
1. Water delivery pipe to the top outlet
2. Air line to the nipple
3. Lower pump into bore
4. Start compressor
Water rises in bursts. That’s it. All maintenance components stay above ground. This keeps servicing simple.
Before purchasing a Brumby Pump from the MixRite line, we recommend you reach out to our customer support team for detailed specifications and guidance.
Frequently asked questions about the Brumby XS1 submersible pump
How deep should I install the Brumby XS1?
Install as deep as possible while leaving clearance above silt. The deeper it sits, the higher the delivery rate.
Will it pump a bore dry?
No. The pump self-regulates and finds equilibrium. If the flow slows, allow the bore to refill.
What compressor size do I need?
Most applications use a 5 to 15 cfm compressor. Pressure depends on lift and submersion depth.
What happens if the water source runs dry?
Nothing. It simply delivers air. It will not burn out.
Can it handle sand?
Yes. The XS1 is designed to pump sandy and gritty water without damage
Order the Brumby XS1 Submersible Pump NZ Wide
The Brumby XS1 is now available through MixRite.
Contact MixRite today to discuss your bore depth, lift height and application requirements.
We will help you specify the right compressor and piping for your site.
